Export data via REST API

Create Token​

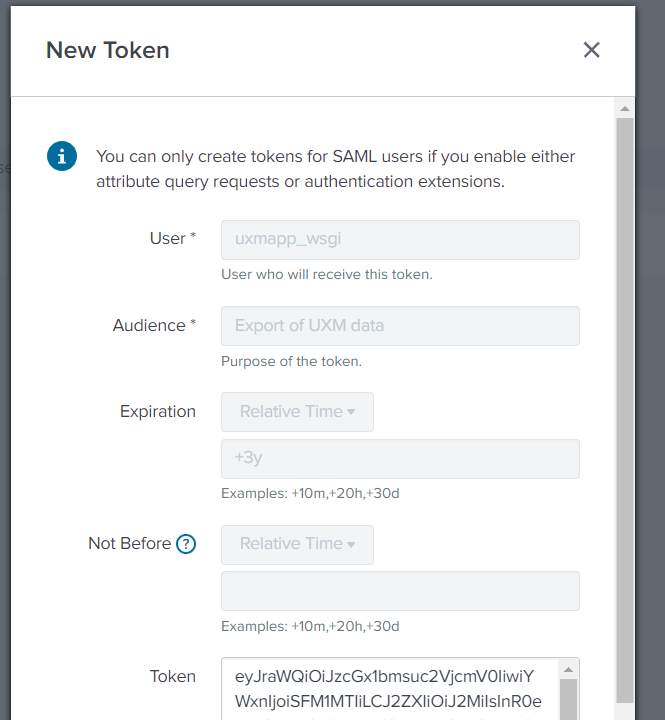

Open Settings -> Tokens and press New Token

Fill out the questions and press "Create".

  • User: uxmapp_wsgi
  • Audience: Export of UXM data
  • Expiry date: +3y

Copy the generated token code and save it, needs to be added to the custom powershell.

Ensure REST service port is accessible​

By default Splunk hosts it's REST API on port 8089, this port can be opened up or a reverse proxy can be setup to forward the data to the local port.

UXM Cloud: Please contact us to get the reverse proxy set

NGINX reverse proxy example that only expose the searches from uxmapp:

location /servicesNS/nobody/uxmapp/search/jobs/export {
proxy_pass_request_headers on;
proxy_set_header x-real-IP $remote_addr;
proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;
proxy_set_header host $host;
proxy_pass https://10.132.0.66:8089/servicesNS/nobody/uxmapp/search/jobs/export;
}

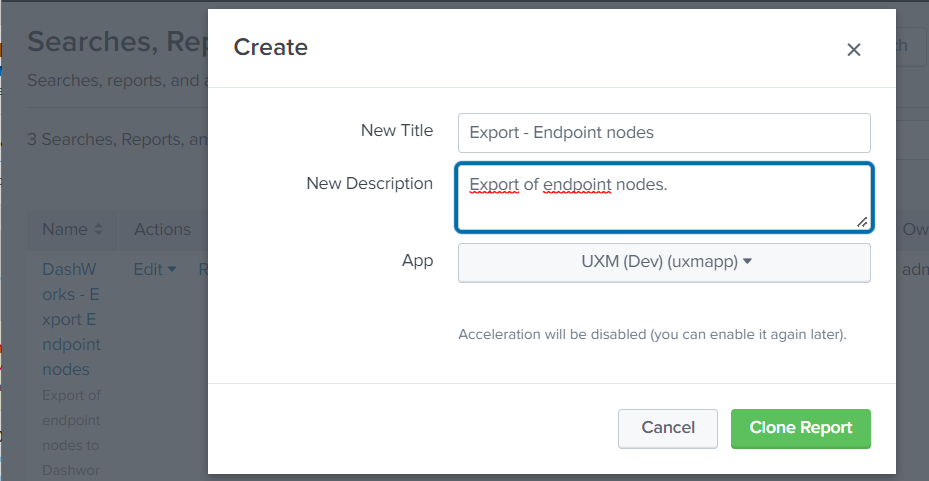

Create report Goto Settings -> "Searches, reports and alerts", Create new report or enable one of the existing "Export - *" reports.

Example SPL to query endpoint nodes and scores, union has been used to merge KVStore and Metric Store data. (join is avoided because it's limited to 50.000 rows)

| union
[| inputlookup ux_nodes_lookup | fields *]
[| mstats latest(uxm.endpoint.score.avg) AS score_avg, latest(uxm.endpoint.score.latency) AS score_latency, latest(uxm.endpoint.score.processor_time) AS score_cpu, latest(uxm.endpoint.score.memory_usage) AS score_memory_usage, latest(uxm.endpoint.score.disk_os_usage) AS score_disk_os_usage, latest(uxm.endpoint.score.logon_duration) AS score_logon_duration
WHERE `getIndexMetrics` BY lookup_key ]
| stats last(active_user) AS "active_user",last(active_username) AS "active_username",last(batteries) AS "batteries",last(battery_device_name) AS "battery_device_name",last(battery_manufacturer_name) AS "battery_manufacturer_name",last(battery_serial_number) AS "battery_serial_number",last(battery_wear_level) AS "battery_wear_level",last(browsers) AS "browsers",last(chassis_sku_number) AS "chassis_sku_number",last(city) AS "city",last(connection_type) AS "connection_type",last(country) AS "country",last(country_name) AS "country_name",last(cpu_clock_frequency) AS "cpu_clock_frequency",last(cpu_cores) AS "cpu_cores",last(cpu_generation) AS "cpu_generation",last(cpu_logical_processors) AS "cpu_logical_processors",last(cpu_model) AS "cpu_model",last(cpu_sockets) AS "cpu_sockets",last(dns) AS "dns",last(domain) AS "domain",last(enabled) AS "enabled",last(hostname) AS "hostname",last(identifying_number) AS "identifying_number",last(internal_ip) AS "internal_ip",last(internal_mac_address) AS "internal_mac_address",last(is_64bit) AS "is_64bit",last(last_boottime) AS "last_boottime",last(last_logon) AS "last_logon",last(last_registration) AS "last_registration",last(location) AS "location",last(log_files_requested) AS "log_files_requested",last(machine_uuid) AS "machine_uuid",last(manufacturer) AS "manufacturer",last(memory_mb) AS "memory_mb",last(model) AS "model",last(os) AS "os",last(os_codename) AS "os_codename",last(os_edition) AS "os_edition",last(os_service_pack) AS "os_service_pack",last(os_version) AS "os_version",last(powerplan) AS "powerplan",last(powerplan_description) AS "powerplan_description",last(powerplan_instance_id) AS "powerplan_instance_id",last(product_caption) AS "product_caption",last(product_name) AS "product_name",last(product_uuid) AS "product_uuid",last(product_version) AS "product_version",last(proxy) AS "proxy",last(public_ip) AS "public_ip",last(release_id) AS "release_id",last(tags) AS "tags",last(type) AS "type",last(vendor) AS "vendor",last(version) AS "version",last(warranty_end) AS "warranty_end",last(warranty_start) AS warranty_start, avg(score_avg) AS score_avg, avg(score_cpu) AS score_cpu, avg(score_memory_usage) AS score_memory_usage, avg(score_disk_os_usage) AS score_disk_os_usage, avg(score_logon_duration) AS score_logon_duration by lookup_key
| fillnull value=10 score_avg

Powershell example to fetch data​

Create file export_endpoint_info.ps1 and add the following code:

Update values:

server: Server to query data from searchName: Saved search to execute and return data from. token: Token created in the begining of this guide.

# This will allow for self-signed SSL certs to work
[System.Net.ServicePointManager]::ServerCertificateValidationCallback = { $true }
[System.Net.ServicePointManager]::SecurityProtocol = [System.Net.SecurityProtocolType]::Tls12

$server = "customername.uxmapp.com"
$searchName = "Export - Endpoint nodes"
$appName = "uxmapp"
$token = "eyJraWQ...OYmg"
$headers = @{
    Authorization="Bearer $token"
}

$url = "https://${server}/servicesNS/nobody/$appName/search/jobs/export"
$search = "| savedsearch ""$searchName"""
Write-Host "Fetching data from $url"

$body = @{
    search = $search
    output_mode = "csv" # json or csv
    earliest_time = "-7d@d"
    latest_time = "now"
}

Invoke-RestMethod -ContentType application/json -Method Post -Uri $url -Body $body -Headers $headers -TimeoutSec 60
