Monitoring IIS logfiles

IIS Log Collection with Universal Forwarder​

A Splunk Universal Forwarder can be used to collect IIS log files from servers.

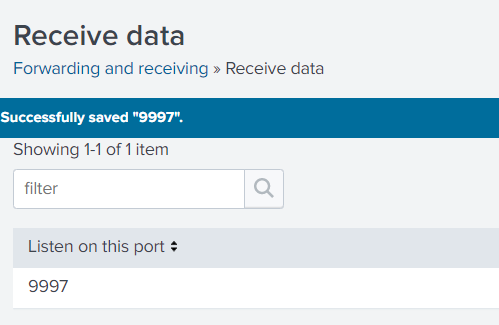

Enable TCP Receiving Port​

  1. Go to:
    Settings → Forwarding and Receiving → Receive Data

  2. Add a TCP receiving port

    • Default: 9997 (can be customized)

Firewall Configuration​

  • Open required ports in:

    • GCP (SaaS)
    • On-premise servers

  • Required ports:

    • 9997 (or your custom port)
    • 8089 (can be reverse proxied)

Download Universal Forwarder​

Download the version matching your Splunk setup:
https://www.splunk.com/en_us/download/universal-forwarder.html

Install Universal Forwarder​

Run the following command (replace placeholders accordingly):

msiexec.exe /i splunkforwarder-9.0.2-17e00c557dc1-x64-release.msi AGREETOLICENSE=yes SPLUNKUSERNAME=splunkadmin SPLUNKPASSWORD={GENERATE_PASSWORD} DEPLOYMENT_SERVER=https://customername.uxmapp.com:8089 RECEIVING_INDEXER="customername.uxmapp.com:9997" /quiet
  • Replace {GENERATE_PASSWORD} with your password
  • Replace customername.uxmapp.com with your server DNS

Setup Deployment App​

  1. Log in to the deployment server or search head configured during installation

  2. Run:

cd /opt/splunk/etc/deployment-apps/
mkdir -p deployed_app_name/default
nano deployed_app_name/default/inputs.conf
chown -R splunk:splunk ./deployed_app_name

IIS Monitoring Configuration​

inputs.conf​

[monitor://C:\inetpub\logs\LogFiles\W3SVC1]
disabled = false
ignoreOlderThan = 30d
sourcetype = uxm:iis
index = uxmapp_iis

props.conf​

[uxm:iis]
DATETIME_CONFIG =
INDEXED_EXTRACTIONS = w3c
LINE_BREAKER = ([\r\n]+)
MAX_TIMESTAMP_LOOKAHEAD = 32
NO_BINARY_CHECK = true
SHOULD_LINEMERGE = false
category = Web
description = W3C Extended log format produced by IIS
detect_trailing_nulls = auto
disabled = false
pulldown_type = 1

Reload Deployment Server​

Run:

sudo runuser -l splunk -c '/opt/splunk/bin/splunk reload deploy-server'

Configure Source Type​

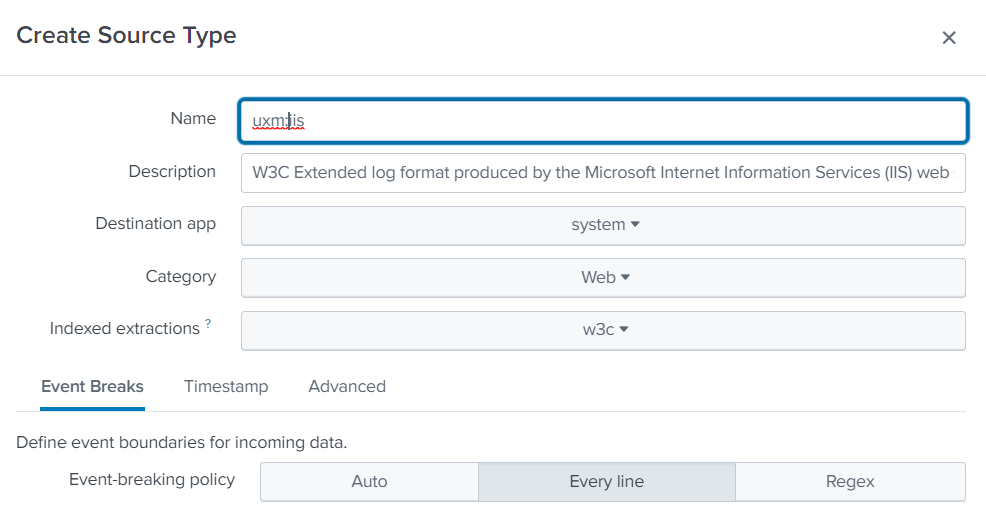

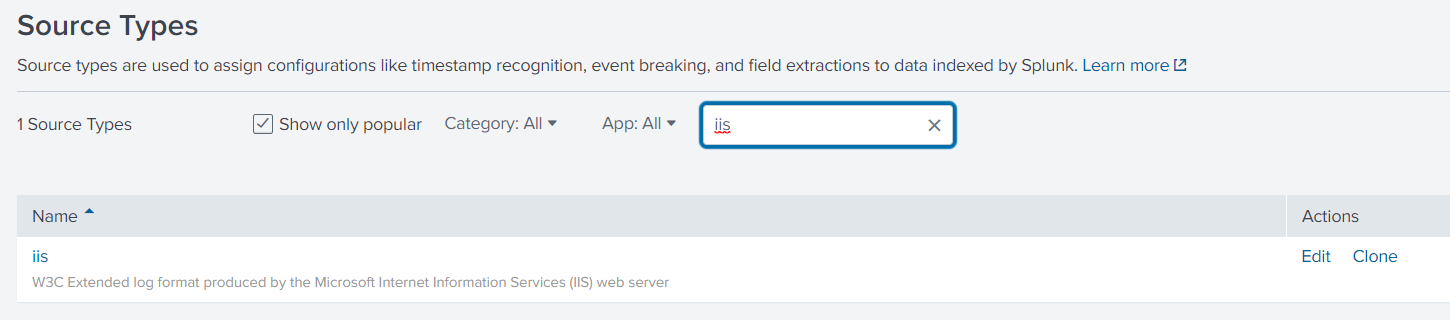

  • Clone the IIS sourcetype on the indexer:
    Settings → Source Types
  • Ensure events are received as uxm:iis (for OEM license compliance)

Assign Forwarder to Deployment​

  1. Follow documentation:
    https://docs.splunk.com/Documentation/Splunk/9.0.2/Updating/Updateconfigurations

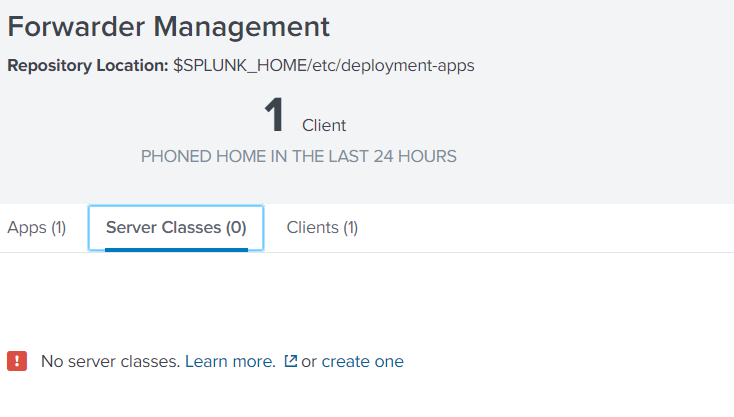

  2. Create a server class:

    • Go to Settings → Forwarder Management

3. Add:

  • Apps
  • Clients (forwarders)

Verify Data Collection​

  • Data will start appearing in the configured index (uxmapp_iis)
  • Use the IIS dashboard to visualize collected data

For more examples:
https://docs.splunk.com/Documentation/Splunk/9.0.2/Updating/Extendedexampledeployseveralstandardforwarders
