Endpoints
It functions as a central monitoring hub, allowing IT administrators to:
- Track Device Details and Software Versions: The dashboard displays key information for each endpoint, including device type, location (country and custom if applicable), manufacturer, and the version of the agent installed. This overview helps ensure all devices are running the latest version, crucial for maintaining system security and functionality.
- Monitor User Activity and Logins: The dashboard tracks user activity by revealing the usernames of the last logged-in users for each device. This information can be valuable for troubleshooting access issues, identifying suspicious login attempts, and monitoring overall device usage patterns.
- Maintain Device Health: The dashboard acts as a watchdog for device health. It displays the current connectivity status of each device. Additionally, it shows the device's last login and reboot timestamps. This information helps identify potential issues like offline devices, devices that haven't rebooted in a long time, or those nearing the end of their warranty period (warranty and remaining information might be displayed).

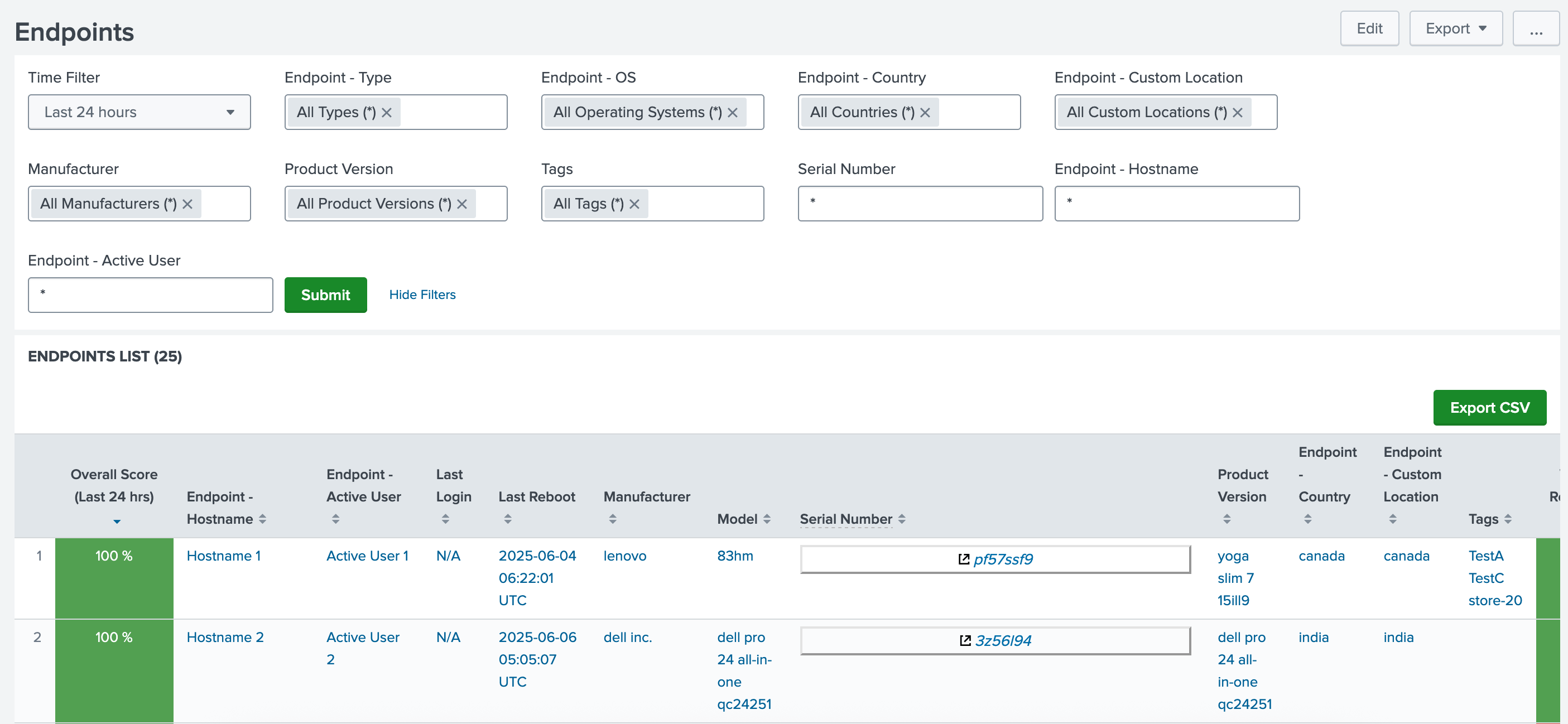

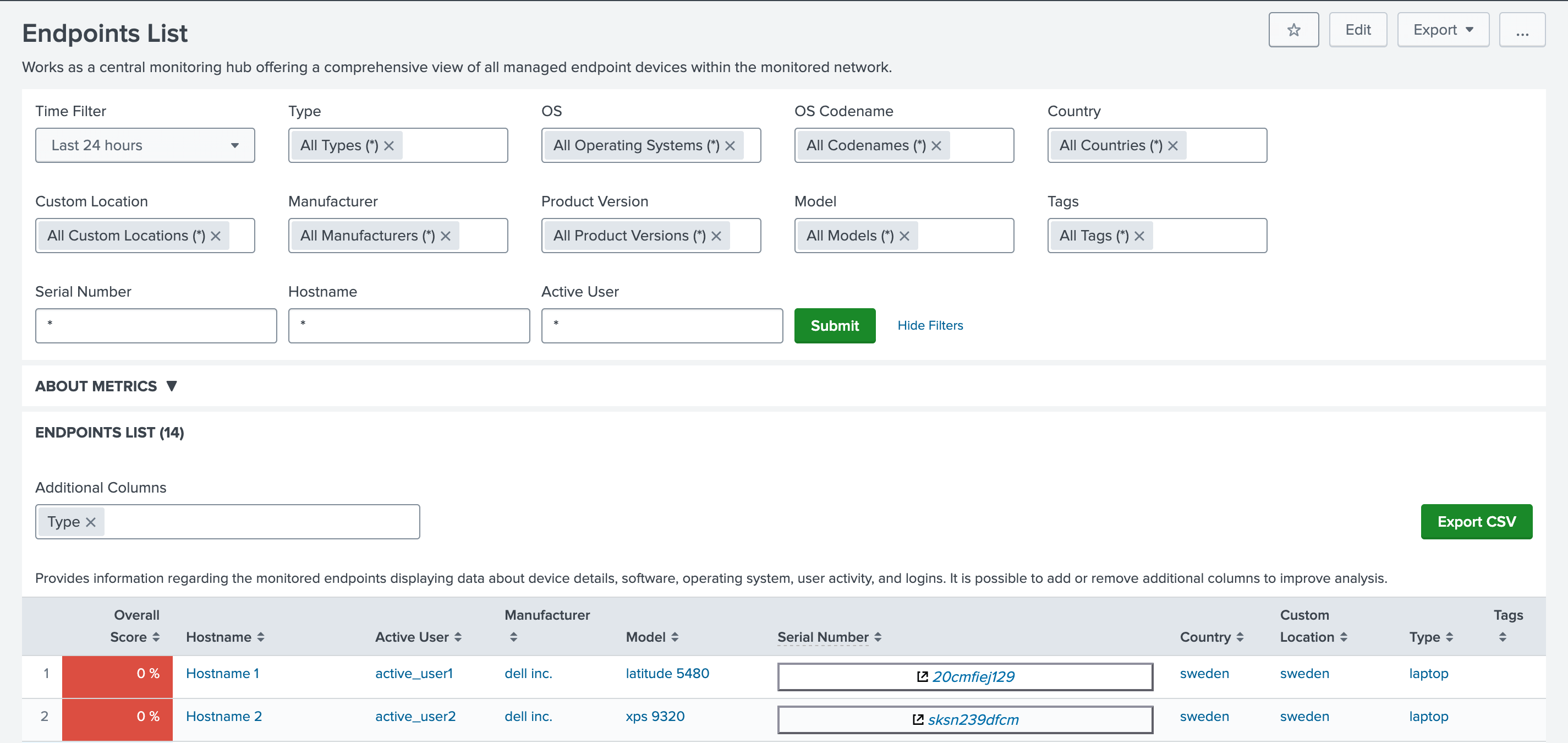

The Endpoints List table provides a comprehensive overview of managed endpoints, presenting key information such as hostname, active user, hardware details, location, and performance scores.
The "Overall Score" metric allows for quick identification of endpoints with potential issues, while hardware and location details aid in inventory management and troubleshooting.
User-defined tags and custom location fields enable efficient filtering and categorization of endpoints, simplifying the management of large and diverse endpoint environments.
About Metrics
Information related to the metrics used in this dashboard. Metrics can be added or removed at any time using the Additional Columns selector.
| Field | Description | Type | Example | UXM Agent |
|---|---|---|---|---|
| Active Department | Department name where the endpoint active user works. | String | marketing | 2026.02.18 |
| Active Division | Divison name where the endpoint active user works. | String | finance | 2026.02.18 |
| Active UPN | User Principal Name of endpoint active user. | String | user@domain.com | 2026.02.18 |
| Active Username | Current logged in user. | String | username | 2026.02.18 |
| Avg. CPU Usage | Average percentage of CPU consumption by the endpoint for the last 5 min, 60 min, 24 hours, 7 days or 30 days. | Number | 15 % | 2026.02.18 |
| Avg. Memory Usage | Average percentage of memory consumption by the endpoint for the last 5 min, 60 min, 24 hours, 7 days or 30 days. | Number | 10 % | 2026.02.18 |
| Batteries | Number of batteries installed on endpoint device. | Number | 1 | 2026.02.18 |
| Battery Device | Name of the battery device. | String | dell kcm827a | 2026.02.18 |
| Battery Manufacturer | Name of the battery manufacturer. | String | dell | 2026.02.18 |
| Battery Serial Number | Battery unique serial number. | String | 21566MJ60VC5 | 2026.02.18 |
| Battery Wear Level | Shows the reduction in a battery's capacity over time, comparing its current maximum capacity to its original design capacity. | Number | 40 % | 2026.02.18 |
| BIOS Release Date | Indicates when a specific version of the motherboard's firmware was compiled or released by the manufacturer. | Date Time | 2025-11-26 01:00:00 CET | 2026.02.18 |
| Browsers | Installed browsers on endpoint. | String | chrome | 2026.02.18 |
| Country | Country name where the endpoint is located. | String | denmark | 2026.02.18 |
| City | City name where the endpoint is located. | String | copenhagen | 2026.02.18 |
| Custom Location | Custom location name for where the endpoint is located. | String | denmark (hq) | 2026.02.18 |
| Connection Type | Endpoint network connection type. | String | wifi | 2026.02.18 |
| CPU Clock Frequency | Amount of cycles a CPU executes to process instructions, dictating its operating tempo. | Number | 2500 | 2026.02.18 |
| CPU Cores | Amount of processing units within a computer's central processor that executes instructions. | Number | 12 | 2026.02.18 |
| CPU Generation | Name of the CPU generation released by manufacturer. | String | intel64 family 6 model 154 stepping 3 | 2026.02.18 |
| CPU Logical Processors | Number of physical cores multiplied by threads per core, representing the total capacity the OS sees for task execution. | Number | 16 | 2026.02.18 |
| CPU Model | Identifier for a processor's brand, performance tier, generation, and capabilities. | String | 12th gen intel(r) core(tm) i5-12500h | 2026.02.18 |
| CPU Sockets | Physical, solder-free connector on a motherboard designed to hold, power, and facilitate data transfer for a CPU. | Number | 1 | 2026.02.18 |
| Chassis SKU Number | Unique, alphanumeric code used by manufacturers to identify a specific model, configuration, or variation of a physical chassis, such as a computer case. | String | Notebook | 2026.02.18 |
| Domain | Human-readable web address that maps to a complex, numeric IP address used by the endpoint. | String | uxmapp.local | 2026.02.18 |
| DNS | Domain Name System associated to the endpoint. | String | 172.217.16.196 | 2026.02.18 |
| EOL Build | End-of-Life build that no longer receives updates or support from its manufacturer. | String | 10.0.22621 | 2026.02.18 |
| Hostname | Hostname assigned to the monitored endpoint. | String | administrator | 2026.02.18 |
| Internal IP | Unique, local identifier assigned to the endpoint by a router within a private network. | String | 192.168.8.156 | 2026.02.18 |
| Internal MAC Address | Unique, 12-digit hexadecimal identifier permanently assigned to a network interface controller (NIC) by its manufacturer. | String | f4:ce:23:fc:63:2c | 2026.02.18 |
| Is 64 bits | Indicates if endpoint has a 64-bit OS processor. | Number | 1 | 2026.02.18 |
| Is Enabled | Indicates if endpoint is enabled for monitoring. | Number | 1 | 2026.02.18 |
| Last Login | Last time a user logged in to the endpoint. | Date Time | 2026-02-19 19:35:35 CET | 2026.02.18 |
| Last Reboot | Last time the endpoint machine was rebooted. | Date Time | 2026-02-20 07:09:49 CET | 2026.02.18 |
| Last UXM Agent Registration (Hourly) | Last time the UXM Agent registered data from the endpoint. | Date Time | 2026-02-20 12:39:26 CET | 2026.02.18 |
| Log Files Requested | Indicates if log files were requested. | Number | 1 | 2026.02.18 |
| Manufacturer | Company name that manufactured the endpoint machine. | String | dell inc. | 2026.02.18 |
| Model | Name assigned to the endpoint machine by the company that manufactured it. | String | xps 15 9520 | 2026.02.18 |
| Machine UUID | Universally Unique Identifier used to uniquely identify the endpoint instance globally. | String | 8518b0-f1dc-3d11-aa89-8113398f1 | 2026.02.18 |
| Memory | Total memory capacity for endpoint machine, expressed in GB. | Number | 16 GB | 2026.02.18 |
| Memory Available | Available amount of GB for endpoint device memory to use. | Number | 7 GB | 2026.02.18 |
| Memory Slots | Physical connectors on endpoint device motherboard where memory modules are inserted to provide temporary, high-speed data storage. | Number | 4 | 2026.02.18 |
| Memory Slots Used | Shows how many physical RAM sticks are currently installed in endpoints's motherboard out of the total available slots. | Number | 2 | 2026.02.18 |
| Monitors | Amount of display monitors connected to the endpoint device. | Number | 2 | 2026.02.18 |
| Operating System (OS) | Name of the OS installed on endopint. | String | windows 11 pro | 2026.02.18 |
| OS Codename | Temporary, internal, or marketing name assigned by manufacturer to an operating system during its development phase. | String | 25h2 | 2026.02.18 |
| OS Drive Free GB | Available amount of GB on drive for endpoint operating system to use. | Number | 150 GB | 2026.02.18 |
| OS Edition | Version of an operating system tailored for particular users or hardware. | String | professional | 2026.02.18 |
| OS Service Pack | Package name containing bug fixes, security patches, driver updates, and feature enhancements for the OS. | String | 1.4 | 2026.02.18 |
| OS Version | Name of the version release or iteration of the endpoint operating system. | String | thinos 2511 (9.6.4029) | 2026.02.18 |
| Power Plan | Collection of hardware and system settings for how endpoint uses and conserves power. | String | balanced | 2026.02.18 |
| Power Plan Description | Details about the endpoint's device power plan. | String | automatically balances performance with energy consumption on capable hardware. | 2026.02.18 |
| Power Plan Instance | Specific, unique occurrence of the configured set of power-saving settings. | String | b4222-f694-41f0-9685-ff5bb2f2e | 2026.02.18 |
| Product Caption | Short text that describes device key features, benefits, and usage. | String | computer system product | 2026.02.18 |
| Product Name | Official and unique name given to the endpoint device by the manufacturer. | String | xps 15 9520 | 2026.02.18 |
| Product UUID | Label used to uniquely identify the endpoint machine within a computer system or across distributed networks. | String | 4C4C44-004E-5410-8044-B8C04F4A5 | 2026.02.18 |
| Product Version | Name the manufacturer sets for a specific product based on monitor size, released year, or other condition. | String | optiplex aio 7420 | 2026.02.18 |
| Proxy | System or router that provides a gateway between the endpoint and the internet. | String | direct | 2026.02.18 |
| Public IP | Unique, internet-facing identifier assigned to the network router by the Internet Service Provider (ISP). | String | 110.57.68.205 | 2026.02.18 |
| Region | Region name where the endpoint is located. | String | emea | 2026.02.18 |
| Release | Identifier of the product release. | String | 2009 | 2026.02.18 |
| Score | Score based on the overall performance of the endpoint for the last 5 min, 60 min, 24 hours, 7 days or 30 days. | Number | 100 % | 2026.02.18 |
| System Drive Free GB | Available amount of GB space on drive for endpoint system to use. | Number | 30.5 GB | 2026.02.18 |
| System Drive Free % | Available amount of space on drive for endpoint system to use, expressed in percentage. | Number | 15 % | 2026.02.18 |
| Serial Number | Unique code used to identify the endpoint machine. | String | 6zui291 | 2026.02.18 |
| Tags | Label assigned to the endpoint for the purpose of identification or to provide additional information. | String | local | 2026.02.18 |
| Type | Related to the endpoint machine type. | String | laptop | 2026.02.18 |
| UXM Agent Version | Version of the UXM Agent installed on endpoint device. | String | 2025.09.25 | 2026.02.18 |
| Vendor | Name of the company that sold the endpoint device. | String | microsoft | 2026.02.18 |
| Warranty | Description of the endpoint device warranty. | String | premium support onsite/pps premium phone support | 2026.02.18 |
| Warranty Country | Location where the warranty is applied. | String | dk | 2026.02.18 |
| Warranty Expiration Date | Date when the endpoint device warranty expires. | Date | 2025-08-16 | 2026.02.18 |
| Warranty Start | Date when the endpoint device warranty started. | Date | 2024-10-16 | 2026.02.18 |
| Warranty Remaining Days | Days left before warranty expires. | String | 100 days | 2026.02.18 |
| Warranty Product | Name of the product that the warranty is covering. | String | xps 15 9520 | 2026.02.18 |
| Warranty Purchased | Date when the endpoint device warranty was purchased. | Date | 2022-08-14 | 2026.02.18 |
| Warranty Next Check | Date when warranty next check will occur. | Date | 2026-02-25 | 2026.02.18 |
| Warranty Shipped | Replacement item or repaired product covered under warranty has been dispatched from the manufacturer/seller. | Date | 2022-08-14 | 2026.02.18 |
| Warranty Error Message | Error message displayed after validating the warranty. | String | serial not found | 2026.02.18 |
